Exchange Server 2016 to Subscription Edition (SE) Migration Part 2 Client Access

Note: I practically installed Exchange Server SE role Mailbox server on Windows Server 2025. In an environment with different internal and public DNS domain and Split DNS (Split-Brain DNS). Into existing Exchange 2016 organization using DAG (Database Availability Group).

Client Access Configuration

• Exchange Server 2016 Client Access - my older article
• Configure external URLs
• Configure MAPI over HTTP in Exchange Server

We need to configure addresses (URLs) for internal and external client access. As well as the required authentication method. A client can connect to any Mailbox server and request routing (proxy) to the server where the active database for their mailbox is located is ensured.

Client Types

A client can be

• a desktop application like Outlook
• a web browser for Outlook on the web
• a mobile device

Supported Protocols and Client Access Methods

Various protocols are available for client access, with communication usually through HTTPS.

• MAPI over HTTP - primary protocol for access from the Outlook application (supported since Outlook 2013 SP1), Messaging Application Programming Interface (MAPI) encapsulated in HTTPS
• Outlook on the web (OWA, formerly Outlook Web App) - access to the mailbox through a web browser
• Exchange ActiveSync - protocol (based on HTTP and XML) for connecting to the mailbox from mobile devices
• Outlook Anywhere - MAPI over RPC over HTTP, older option for connecting clients that don't support MAPI over HTTP (I don't understand which clients these would be, Exchange SE supports Outlook from version 2016, which supports MAPI over HTTP)
• POP3 and IMAP4 - optional mailbox access using programs that use POP3 or IMAP4 protocol

Configuration of Internal and External Addresses (URLs) and Authentication

The services we will configure run on the Exchange Mailbox server as IIS virtual directories (Virtual Directories). Configuration can be performed using Exchange Admin Center (EAC) or Exchange Management Shell (EMS). For most situations, we can look at the settings on the existing server and configure the service on the new Exchange SE the same way.

After installing Exchange Server, its individual client services are configured with the address of that server for internal access (Internal URL). External access (External URL) is not configured. Our goal is therefore to change the internal URL and add an external URL. The service addresses used were described in the previous part, which are mail.firma.local and mail.firma.cz. Internally, the address is a DNS A record that contains IP addresses of all Exchange servers (without the new Exchange SE for now).

Outlook Anywhere

I think Outlook Anywhere is no longer used and it would be best to disable it, but this cannot be done easily.

Note: In practice, I found that Outlook sometimes tries to connect to Outlook Anywhere. The internal address must be specified in the configuration and then it depends on the host name and the certificate used (a warning pops up in case of an error, even though Outlook remains connected).

Exchange Admin Center

Configuration using EAC is located in a different place than all other services (except for POP3 and IMAP4, which we don't address here).

• EAC - Exchange Admin Center
• Servers - Servers
• select the server and click the pencil (Edit)
• switch to Outlook Anywhere
• configure Specify the external host name, Specify the internal host name, Specify the authentication method for external clients

Exchange Management Shell

Using EMS, we can list important settings for all servers.

[PS] C:\>Get-OutlookAnywhere | fl servername,external*,internal*,iis*,ssl*

ServerName                         : MAIL0
ExternalHostname                   : mail.firma.cz
ExternalClientAuthenticationMethod : Negotiate
ExternalClientsRequireSsl          : True
InternalHostname                   : mail.firma.local
InternalClientAuthenticationMethod : Ntlm
InternalClientsRequireSsl          : True
IISAuthenticationMethods           : {Basic, Ntlm, Negotiate}
SSLOffloading                      : True

And perform necessary settings on the new server (some parameters must be specified together).

Set-OutlookAnywhere -Identity "MAIL1\Rpc (Default Web Site)" -ExternalHostname "mail.firma.cz" -ExternalClientsRequireSsl $true `
 -ExternalClientAuthenticationMethod Negotiate -InternalHostname "mail.firma.local" -InternalClientsRequireSsl $true `
 -InternalClientAuthenticationMethod Negotiate

Other Services - Virtual Directories

• Default settings for Exchange virtual directories in Exchange Server

Exchange Admin Center

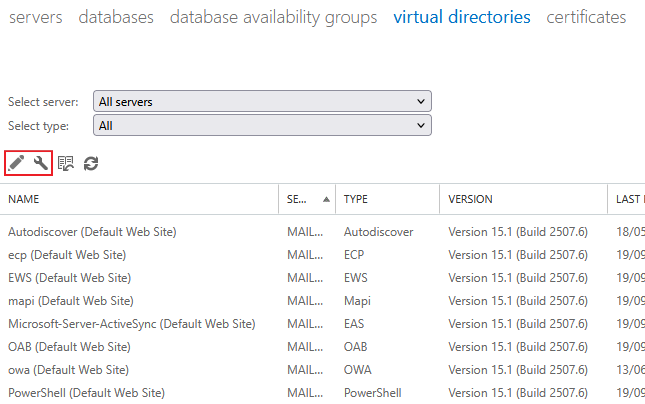

Configuration of other client access services in EAC is located in a common place.

• EAC - Exchange Admin Center
• Servers - Virtual directories

Here are virtual directories for individual services. Not just those we mentioned at the beginning.

• mapi (Default Web Site) - MAPI over HTTP
• owa (Default Web Site) - Outlook on the web (OWA)
• Microsoft-Server-ActiveSync (Default Web Site) - Exchange ActiveSync (EAS)
• AutoDiscover (Default Web Site) - AutoDiscover
• ecp (Default Web Site) - Exchange Admin Center, formerly Exchange Control Panel (ECP)
• EWS (Default Web Site) - Exchange Web Services (EWS)
• OAB (Default Web Site) - Offline Address Book (OAB)
• PowerShell (Default Web Site) - PowerShell remote access

The address for external access can be set in bulk by clicking the key icon (Configure external access domain). Others are configured for individual servers and services.

• at the top we can filter a specific server or service type
• in the list, select the service (directory) and click the pencil icon (Edit)
• for most services we can configure internal and external URL and authentication

Exchange Management Shell

Using EMS, we can list important settings for individual services (directories) on all servers.

Main Services

Get-MapiVirtualDirectory | FL Server,external*,internal*,iis*
Get-OwaVirtualDirectory | FL ServerName,externalurl,internalurl,*auth*,LogonFormat
Get-ActiveSyncVirtualDirectory | FL Server,external*,internal*,*authenabled*,*certauth,*ssl*

Additional Services

Get-WebServicesVirtualDirectory | FL Server,external*,internal*,*Authentication
Get-OABVirtualDirectory | FL Server, external*,internal*,*Authentication,*SSL
Get-EcpVirtualDirectory | FL Server, external*,internal*,*Authentication
Get-PowerShellVirtualDirectory | FL Server, external*,internal*,*Authentication,*SSL

Autodiscover We don't configure URLs on the virtual directory, but only authentication. Domain clients also use the SCP (Service Connection Point) object in AD to find the address.

Get-AutodiscoverVirtualDirectory | FL Server,*Auth*
Get-ClientAccessService | FL Name,*Enabled,*Uri,*Site*

Setting Internal and External Addresses Using EMS

Internal and external addresses can be easily configured using EMS.

$s = "mail1"
$urlI = "mail.firma.local"
$urlE = "mail.firma.cz"

Get-MapiVirtualDirectory -Server $s | Set-MapiVirtualDirectory -InternalUrl https://$urlI/mapi -ExternalUrl https://$urlE/mapi
Get-OwaVirtualDirectory -Server $s | Set-OwaVirtualDirectory -InternalUrl https://$urlI/owa -ExternalUrl https://$urlE/owa
Get-ActiveSyncVirtualDirectory -Server $s | Set-ActiveSyncVirtualDirectory -InternalUrl https://$urlI/Microsoft-Server-ActiveSync `
 -ExternalUrl https://$urlE/Microsoft-Server-ActiveSync

Get-EcpVirtualDirectory -Server $s | Set-EcpVirtualDirectory -InternalUrl https://$urlI/ecp -ExternalUrl https://$urlE/ecp
Get-WebServicesVirtualDirectory -Server $s | Set-WebServicesVirtualDirectory -InternalUrl https://$urlI/EWS/Exchange.asmx `
 -ExternalUrl https://$urlE/EWS/Exchange.asmx

Get-OabVirtualDirectory -Server $s | Set-OabVirtualDirectory -InternalUrl https://$urlI/OAB -ExternalUrl https://$urlE/OAB
Get-PowerShellVirtualDirectory -Server $s | Set-PowerShellVirtualDirectory -InternalUrl https://$urlI/powershell `
 -ExternalUrl https://$urlE/powershell

Get-ClientAccessService -Identity $i |
 Set-ClientAccessService -AutoDiscoverServiceInternalUri https://$urlI/Autodiscover/Autodiscover.xml

Authentication Methods

• Understanding HTTP Authentication

Choosing an appropriate form of authentication considering the type of service and specific conditions is a significant and rather complex task. I already dealt with this during the transition to Exchange 2016, and neither then nor now have I found any reasonable documentation. If we have currently well-configured settings, we simply perform the same configuration on the new server. But it may be appropriate to reevaluate everything.

We should use the most secure authentication method. This could be Kerberos, which we can only use internally within the domain. Even better would be Modern Auth, i.e., OAuth 2.0, but this requires ADFS or Hybrid Modern Authentication (HMA). For some services (like ActiveSync), we must typically stick with Basic authentication.

Windows Extended Protection

• Configure Windows Extended Protection in Exchange Server
• Exchange Server Support for Windows Extended Protection

It is important that after installation Windows Extended Protection is automatically enabled. If we do not meet the conditions, users who connect with Outlook from the Internet may have a problem. This is manifested in the fact that the login dialog pops up all the time.

In the Windows Security Event Log we find the Event ID 4625, Audit Failure, An account failed to log on.

Failure Reason: An Error occured during Logon.
Status:         0xC000035B

The problem can be when we use SSL Bridging. Firewall or Load Balancer decrypts SSL connections from clients and establishes a new encrypted connection to Exchange. This can be used because external clients connect to a public domain and we use a commercial certificate. But in the internal network we have a non-public domain and certificates from an internal CA. And this is exactly the situation that is not supported with Windows Extended Protection.

SSL Bridging can only be used if we have the same certificate on the Exchange server and on the Firewall. The solution is to use public DNS names for Exchange web services in the internal network (usually one shared/virtual address) and set up a commercial certificate everywhere.

Kerberos Authentication for Load-Balanced Client Access

• Configure Kerberos authentication for load-balanced Client Access services

Because we use a virtual address, a common domain name (same namespace and URL), for all Exchange servers. We have load-balanced Mailbox servers where client access services run. When we want to use Kerberos authentication for a service (like MAPI over HTTP), we must create a special account in the domain and configure Service Principal Names (SPN) for it. All servers must use the same Alternate Service Account (ASA) credential.

This is described in detail in the official documentation or in the older article Exchange Server 2016 Client Access. We should no longer use RC4 on the account, so the msDS-SupportedEncryptionTypes attribute has a value like 24. Here we assume that the account is already created and we only configure it on the new Exchange servers.

Checking Current Settings

[PS] C:\>Get-ClientAccessService -IncludeAlternateServiceAccountCredentialStatus | FL Name, AlternateServiceAccountConfiguration

Name                                 : MAIL0
AlternateServiceAccountConfiguration : Latest: 25.03.2019 7:49:00, firma\EXCH2016ASA$
Previous: <Not set>

Name                                 : MAIL1
AlternateServiceAccountConfiguration : Latest: <Not set>
Previous: <Not set>

Setting ASA Credential on Another Exchange Server

cd $ExScripts
.\RollAlternateServiceAccountPassword.ps1 -ToSpecificServer mail1.firma.local -CopyFrom mail0.firma.local

MAPI over HTTP

• MAPI over HTTP in Exchange Server

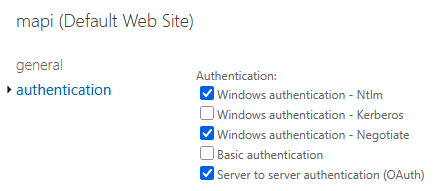

When listing settings, InternalAuthenticationMethods, ExternalAuthenticationMethods, and IISAuthenticationMethods are displayed, but in both EAC and EMS we can only set a common value (so we cannot have different internal and external methods). Using the Set-MapiVirtualDirectory cmdlet, we use the IISAuthenticationMethods parameter. The default setting is NTLM, OAuth, and Negotiate. Microsoft recommends always having oAuth configured.

Set-MapiVirtualDirectory -Identity "MAIL1\mapi (Default Web Site)" -IISAuthenticationMethods OAuth, Negotiate

Outlook on the Web (OWA) and Exchange Admin Center (EAC)

• Outlook on the web in Exchange Server

Authentication methods for OWA and EAC must be set the same. Forms Based Authentication (FBA) is often used, which uses Basic authentication in the background. We again set authentication jointly for both internal and external connections.

Configuration is easily done using EAC. For FBA, we also set the name format. But only for OWA, for ECP we always have to log in using Domain\user name. For OWA, we further configure allowed OWA features and file access. After some changes, it's necessary to restart IIS.

Exchange ActiveSync

• Exchange ActiveSync in Exchange Server

Basic authentication is used by default, with additional options being Certificate Based Authentication (CBA) or Hybrid Modern Authentication (HMA).

Exchange Web Services (EWS)

• Authentication and EWS in Exchange

By default, Windows authentication is used. For some cases, Basic authentication was used, which is no longer recommended.

If we have Exchange Hybrid, we should enable MRS Proxy on EWS (Enable MRS Proxy endpoint).

Outlook Anywhere (RPC over HTTP)

• Outlook Anywhere

As we mentioned, Outlook Anywhere should no longer be needed, but we'll provide the main information anyway. Various tips can be found in the article Disable Basic authentication on the RPC (Outlook Anywhere) virtual directory.

It states that we should configure authentication using EMS because EAC only configures external settings. It's recommended to set the same methods for both internal and external access. The Set-OutlookAnywhere cmdlet has parameters InternalClientAuthenticationMethod, ExternalClientAuthenticationMethod, and IISAuthenticationMethods that set individual values. Or we can use the common DefaultAuthenticationMethod.

Get-OutlookAnywhere -Server MAIL1 | Set-OutlookAnywhere -DefaultAuthenticationMethod Negotiate

In other examples, the following configuration is often mentioned.

Get-OutlookAnywhere -Server MAIL1 | Set-OutlookAnywhere -ExternalClientAuthenticationMethod Negotiate `
 -InternalClientAuthenticationMethod Negotiate -IISAuthenticationMethods Basic,NTLM,Negotiate

Configuring Download Domains

• Configure Download Domains in Exchange Server

To secure attachment downloads within OWA against CSRF (cross-site request forgery) attacks, it's recommended to configure a different domain.

Checking Current Settings

Get-OwaVirtualDirectory | FL ServerName,*Download*

Configuring New Server

Get-OwaVirtualDirectory -Server MAIL1 | Set-OwaVirtualDirectory -ExternalDownloadHostName "maildownload.firma.cz" `
 -InternalDownloadHostName "maildownload.firma.cz"

Outlook AutoDiscover Test and Connection Information

Directly in the Outlook application, we can perform simple checks.

• launch Outlook
• click using Ctrl + right mouse button on the Outlook icon in the notification area (next to the clock)

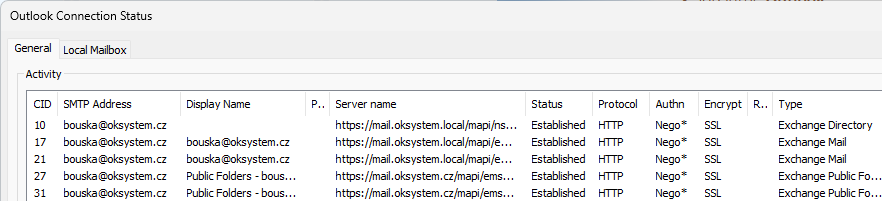

Connection Status

• Description of the Connection Status dialog in Outlook

We can find out which Exchange servers we're connecting to, using which protocol and authentication.

• click on Connection Status
• we see individual connections to specific servers or virtual addresses, showing protocol (HTTP for MAPI over HTTP, RPC/HTTP for Outlook Anywhere), URL, authentication (NEGO, NTLM, KERBEROS, CLEAR - Basic, BEARER - OAuth bearer token), encryption, and more

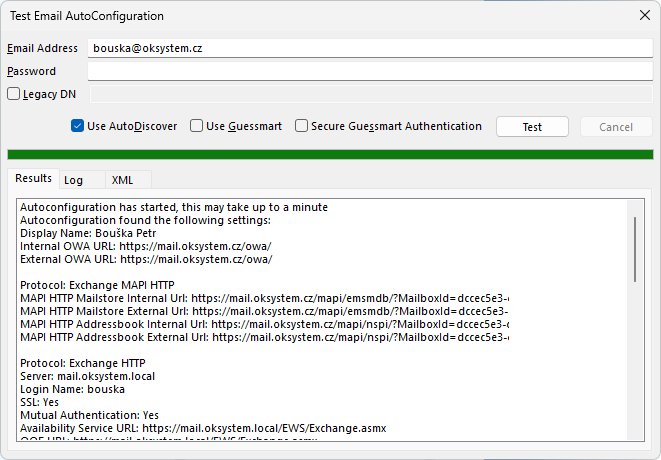

Test E-mail AutoConfiguration

We can look at the information returned by AutoDiscover.

• click on Test E-mail AutoConfiguration
• we can test the Autodiscover service, the log shows the process of finding the URL and downloading XML, with configuration data content among the results
